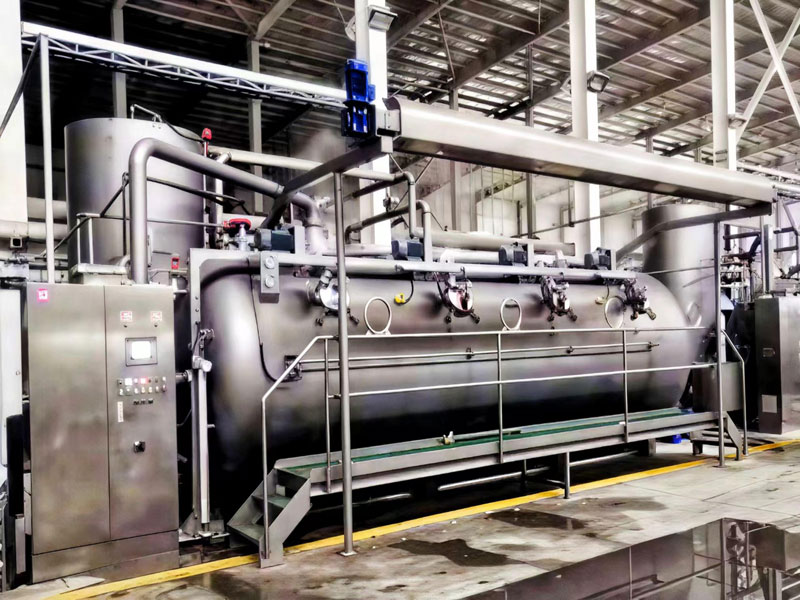

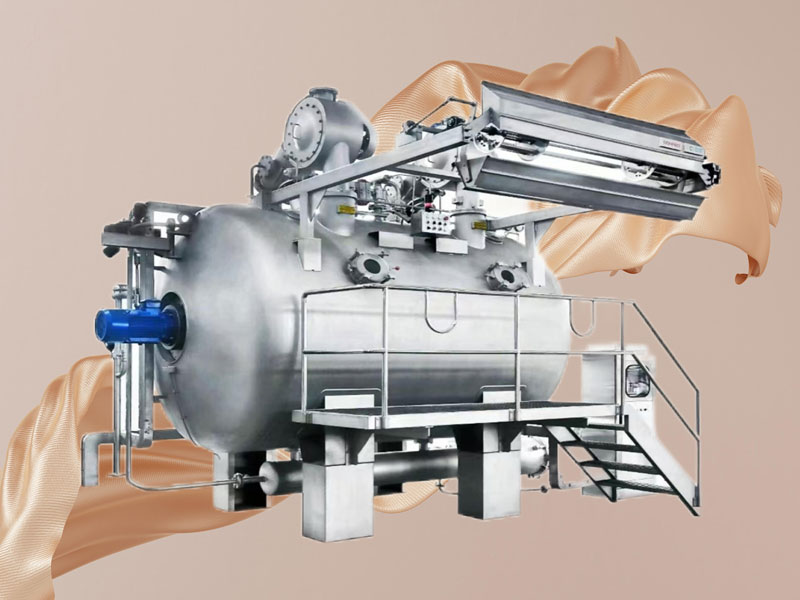

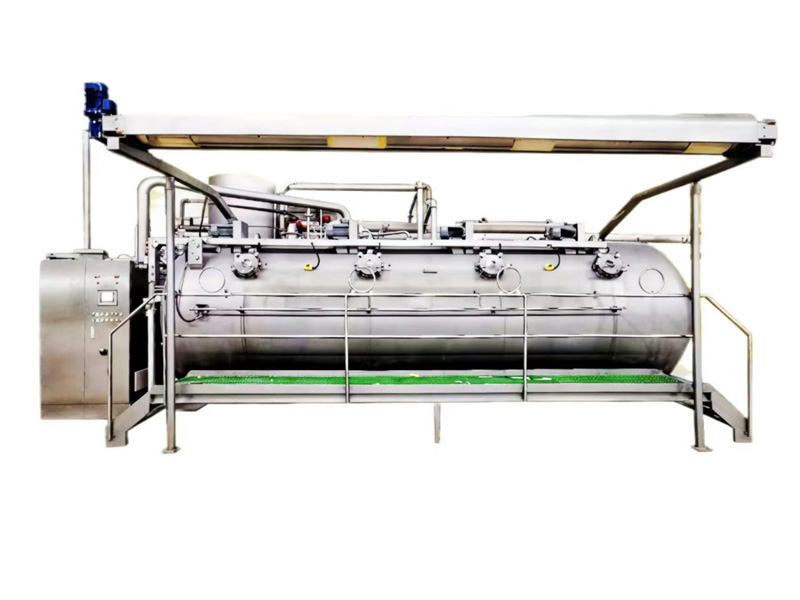

High temperature high pressure towel dyeing machine

This machine is tailor-made for dyeing pure cotton towels, polyester blended towels and high grammage fabrics.

Equipped with an extra-large 250 mm nozzle and an ultra-wide fabric groove, it provides ample space for fabric relaxation and uniform dyeing.

Fitted with high-performance stainless steel centrifugal pumps and an advanced dye liquor circulation system, it delivers stable and superior dyeing results.

The built-in self-cleaning filter efficiently removes lint and sundries to keep the dyeing system clean.It features a low liquor ratio of 1:4.5, effectively cutting water usage and lowering energy consumption.Supported by a high-precision programmable controller, it greatly boosts dyeing efficiency and ensures excellent batch-to-batch color reproducibility.

Product features

1. Lifter reel device is within the vessel

2. Lesser lifting height to avoid elongation of fabric

3. Lower tension on fabric during processing

4. Lesser shrinkage

5. Lower power consumption on lifting reel

6. Better finishing quality on pile

7. Adjustable sinking tank design, with teflon plates underneath. Towel and dye fluids separate well.

8. Fabric travel above the dye fluid

9. Low bath ratio 1:4.5

10. Extra capacity , 250-300KGS/ tube

11. Flexible in dyeing different types of fabrics

12. Lesser entanglement

13. 100%Stock Tank ( optional )

14. Prevent water shortage

15. Avoid long waiting time, preheated water maybe pump into main vessels quickly

16. Linked with dosing tank

17. Shorten cycle and processing time

18. Auto lint cleaning and filter

19. Ensure stable nozzle pressure

20. During each drainage , filter is automatically cleaned , shorten cleaning time

21. Dyeing process maybe repeated with high accuracy

22. Lower power requirement from the main pump, save energy

23. Specially nozzle and fabrics folding system

24. Handles wide range of GSM of fabrics

25. Cone shaped nozzle with wide opening at one end , fabrics maybe opened up

26. Wave shape tubes with wide opening , which allows fabrics to open up and get an even dyeing effect

27. During exit from nozzle and wave shape tube , the whole structure swings left and right . This avoid squeezing to the two edges of the towel as in the traditional machines
