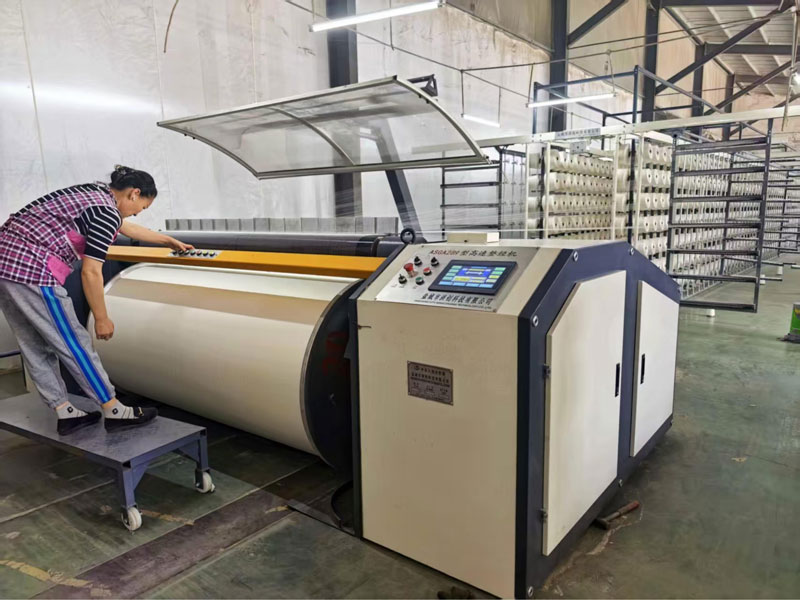

Batch warping machine working width 180cm 200cm 220cm 240cm
Batch warping machine working width 180cm 200cm 220cm 240cm
This machine can accurately control length and arrangement of warp yarn. It is suitable for directly warping of various kinds of chopped yarns and is the prespinningpreparation equipment for various kinds of pirnless looms.
WhatsApp: +8615853288520
Email: info@weavetechsupply.com
Product Description
Batch warping machine working width 180cm 200cm 220cm 240cm
Range of application
This machine can accurately control length and arrangement of warp yarn. It is suitable for directly warping of various kinds of chopped yarns and is the prespinningpreparation equipment for various kinds of pirnless looms.
Product Specifications
| Fabric width of warping beam | 1400mm-3000mm |
| Diameter of warp beam | φ800mm、φ1000mm、φ1250mm |
| Speed of beam warping | 300-1200m/ min |
| Braking length | ≤3m(800m/ min) |
| Error in the length of warped yarn | ≤0.2% |
| Left and right adjustable range of reed | 0-40mm |
| Power of main motor | 15KW-22KW |
| Operation displayer | 10.4 inch touch panel |
| Weight of main body | 3500KG |

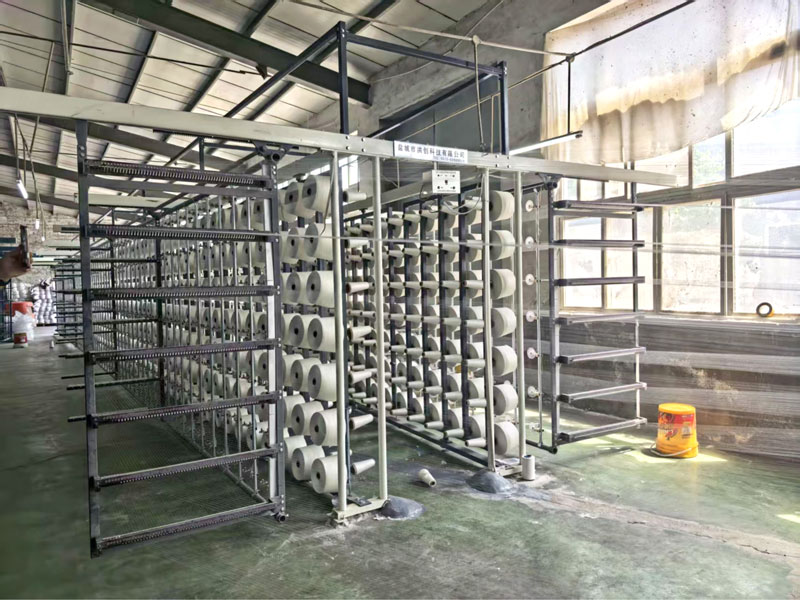

| Bobbin creel | V-shaped recirculated、 Turnover V-creel |
 |

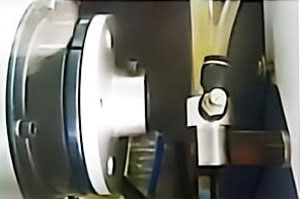

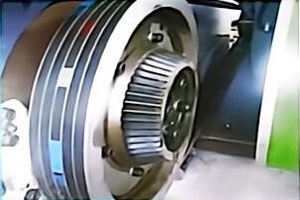

Warp beam chucks
40° inner cone engagement and selfcentering ensure high-speed running and security brake. |
 |
Blowing device
The blowing device makes the expansion reed clean. |
 |

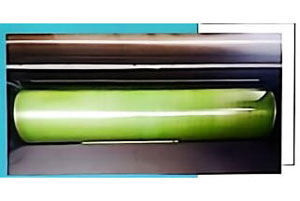

Pressure roller device
The pressing force is electrohydraulic controlled and adjustable between200-6000N. |
 |

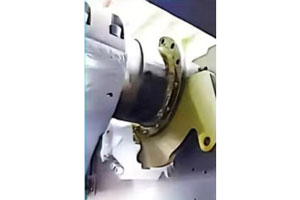

Braking device
The electro-hydraulic controlled disc brakes on both sides, ensure brake for the high-speed running beam rapidly. Brakes on guide roller and pressing Roller ensure the synchronized braking. |
 |

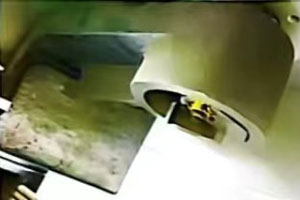

Electronnic length counting
Through the encoder fixed on the pressure roller the yarn length can be calculated precisely and ensure the same length of different batches. |
 |

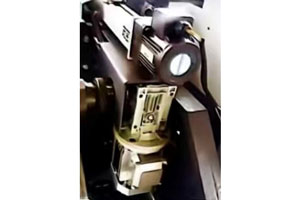

Reed swing device
Expansion reeds move along X and Y axis by motor control. Prevent the yarn being cut off and increasing the service life of expansion reed. |
 |

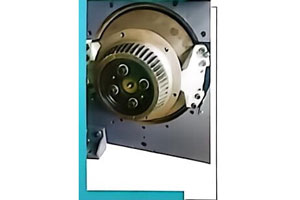

Constant damping device
Two hydraulic controlled disc brakesact the con-stant damping on the pressing roller and ensure the constant pressing force. |
 |

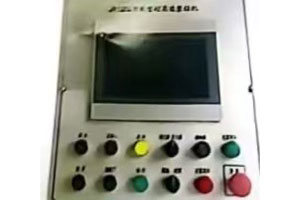

Host computer touch screen workstation
Visualized program input and output, further simplified process information. Automatic calculate procedure parameters, display live process parameters. |
